Product Description
General Features:

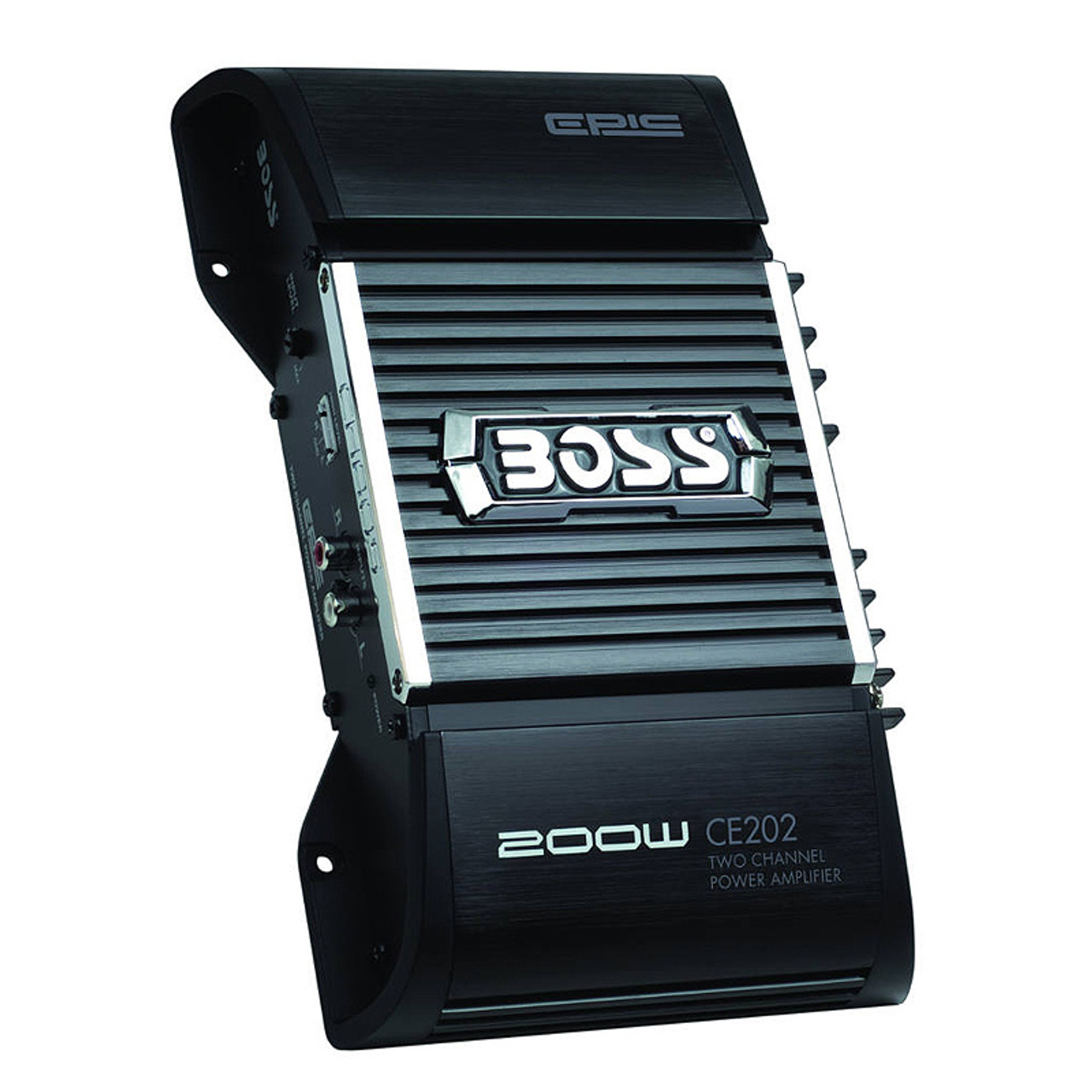

- Chaos Epic Series 2-Channel Power Amplifier
- RMS Power Rating:
- 4 ohms: 50 watts x 2 chan.
- Max Power Rating:
- 2 ohms: 100 watts x 2 chan.
- Max power output: 100 watts x 2 chan.
- MOSFET power supply
- LED power and protect indicators
- Soft Start Turn-on
- 2-Channel operation
- Remote turn on/off circuit
- Variable input gain control
- 2-Way System Protection circuitry (thermal and speaker short protection)
- Heavy duty black anodized aluminum heatsink for extreme heat dissipation
- Nickel-plated RCA level inputs
- Nickel-plated screw terminals
- Variable low-pass filter
- Frequency Response: 12-22,000 Hz
- Signal-to-Noise Ratio: 90 dB
- Channel Separation: 60 dB
- THD (Total Harmonic Distortion): 0.01%
- Dimensions: 5-15/16"D x 9-13/16"W x 2-1/8"H
- 8-gauge power and ground wiring is required for installation.
