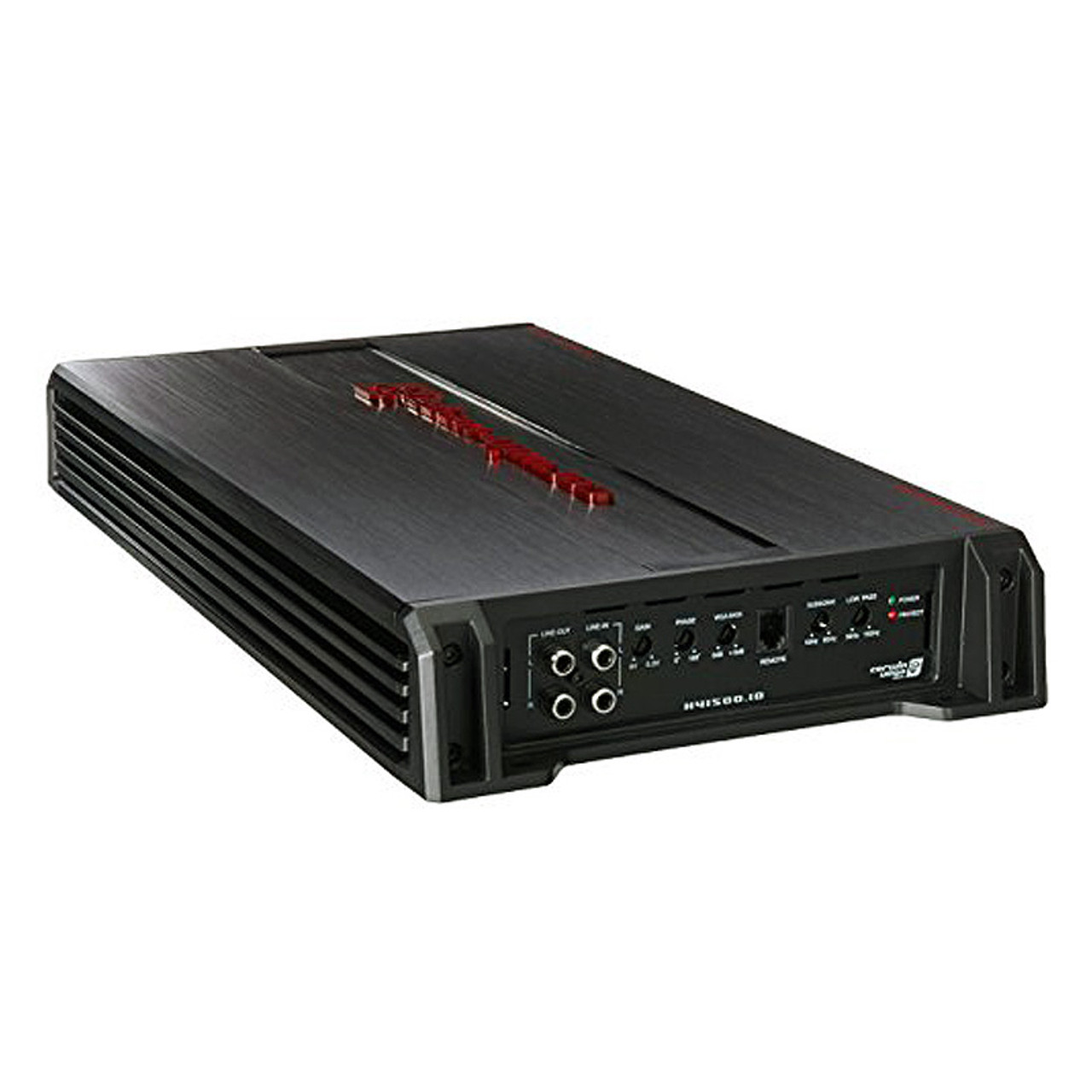

Cerwin-Vega H41500.1D

Product Description

General Features:

• HED Series Monoblock Class D Car Amplifier
• RMS Power Rating:
• 4 ohms: 300 watts x 1 chan.
• 2 ohms: 500 watts x 1 chan.
• 1 ohm: 750 watts x 1 chan.
• Max Power Output: 1500W
• Heavy-Grade Aluminum Alloy Extruded Heatsink
• Illuminated Ambient Lit Cerwin-Vega Logo
• Wired Level Control Knob Included
• LED power (green) and protect (red) indicators
• Preamp RCA outputs to daisy chain multiple amps
• Dual Speaker outputs for easier installation of multiple drivers
• Power Supply Threshold: 10.0 VDC - 17.0 VDC
• Total Harmonic Distortion: 0.1%
• Signal to Noise Ratio (@1w): 90 dBa
• Input Sensitivity: 0.2 mV - 6.0 V
• Damping Factory: >150
• Frequency Response: 10 - 250 Hz
• Variable low-pass filter: 35 - 150 Hz
• Variable subsonic filter: 10 - 50 Hz
• Variable Bass Boost: 0 - 9 dB
• Variable phase: 0 - 180°
• Fuse Rating: 80A x 1
• 4 gauge power and ground wiring is recommended for installation
• Dimensions: 8.875"W x 16.85"L x 2.187H
