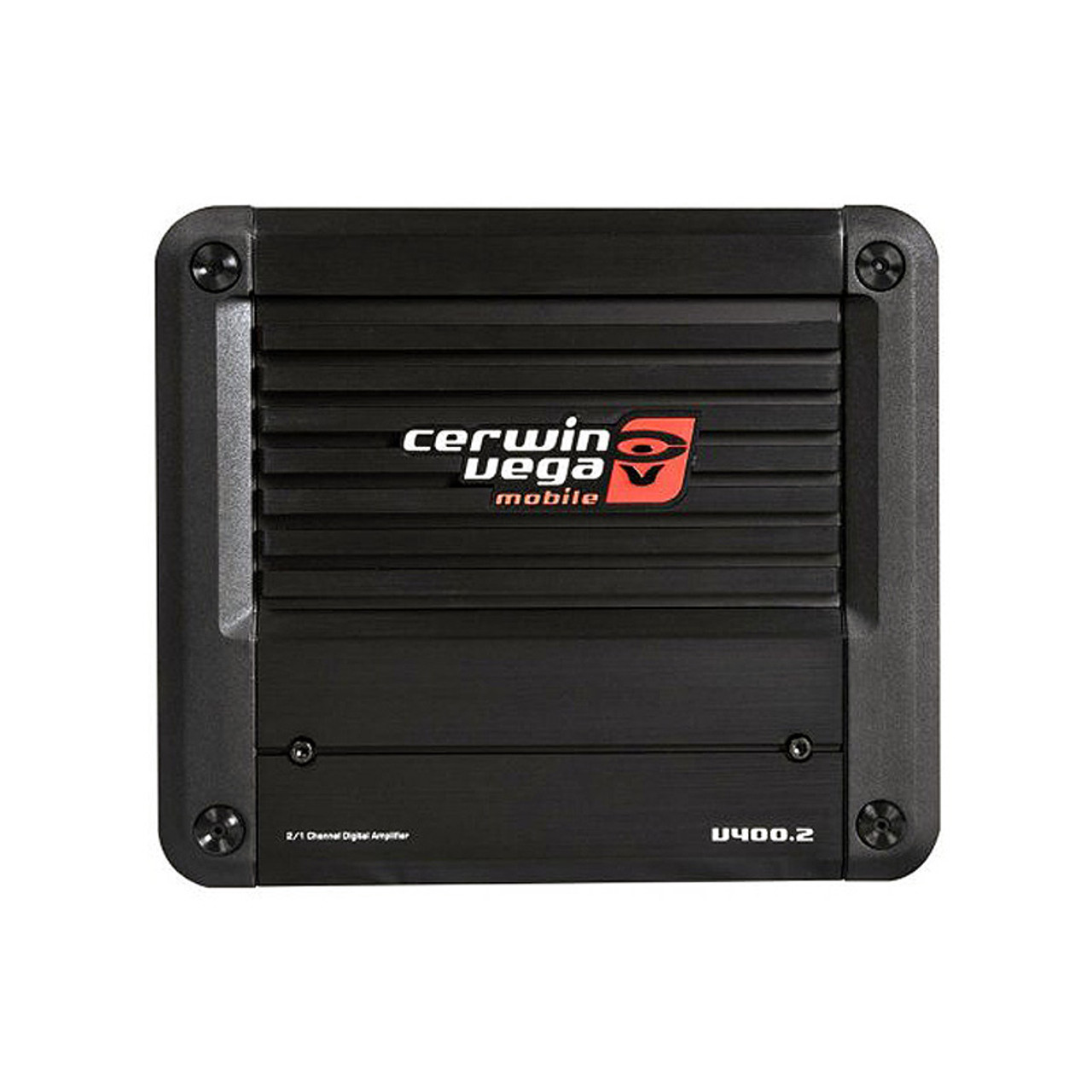

Cerwin-Vega V400.2

Product Description

General Features:

• Vega Series 2-Channel Class D Car Amplifier
• RMS Power Rating:
• 4 ohms: 150 watts x 2 chan.
• 2 ohms: 250 watts x 2 chan.
• Bridged 4 ohms: 500 watts x 1 chan.
• Latest high efficiency full range digital topology
• Surface mount component technology with 4-layer PCB
• Convenient output clip indication for easy system set up
• Tiffany style low level RCA inputs
• Removable top cover plate
• Power Supply Threshold: 10.0 VDC - 17.0 VDC
• Total Harmonic Distortion: 0.05%
• Signal to Noise Ratio (@1w): 77.2 dBa
• Input Sensitivity: 0.2 mV - 5.0 V
• Damping Factory: >250
• Selectable Crossover: HPF/Flat/LPF
• Frequency Response: 10 - 35,000 Hz
• Variable high-pass filter: 40 - 400 Hz
• Variable low-pass filter: 40 - 400 Hz
• Selectable Bass Boost: 0dB/9dB/18dB
• Fuse Rating: 30A x 2
• 8 gauge power and ground wiring is recommended for installation
• Dimensions: 1.93"W x 7.25"L x 8.5"H
