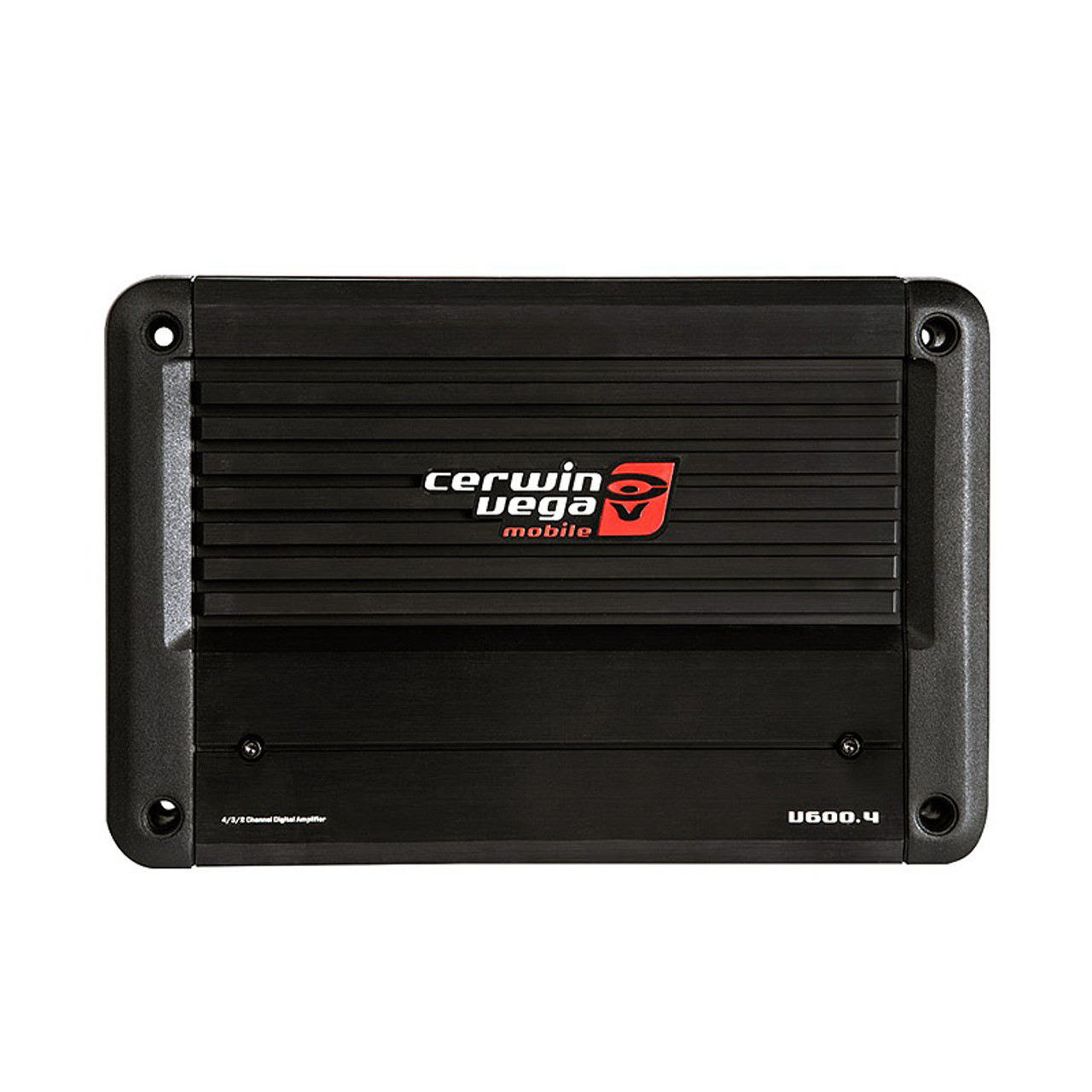

Cerwin-Vega V600.4

Product Description

General Features:

• Vega Series 4-Channel Class D Car Amplifier
• RMS Power Rating:
• 4 ohms: 100 watts x 4 chan.
• 2 ohms: 150 watts x 4 chan.
• Bridged, 4 ohms: 300 watts x 2 chan.
• Latest high efficiency full range digital topology
• Surface mount component technology with 4-layer PCB
• Convenient output clip indication for easy system set up
• Tiffany style low level RCA inputs
• Removable top cover plate
• 2 or 4 Channel Operation
• Power Supply Threshold: 10.0 VDC - 17.0 VDC
• Total Harmonic Distortion: 0.07%
• Signal to Noise Ratio (@1w): 77.4 dBa
• Input Sensitivity: 0.2 mV - 5.0 V
• Damping Factory: >250
• Selectable Crossover: HPF/Flat/LPF
• Frequency Response: 10 - 35,000 Hz
• Variable high-pass filter: 40 - 400 Hz
• Variable low-pass filter: 40 - 400 Hz
• Selectable Bass Boost: 0dB/9dB/18dB
• Fuse Rating: 30A x 2
• 4 - 8 gauge power and ground wiring is recommended for installation
• Dimensions: 7.25"W x 10.47"L x 1.93"H
