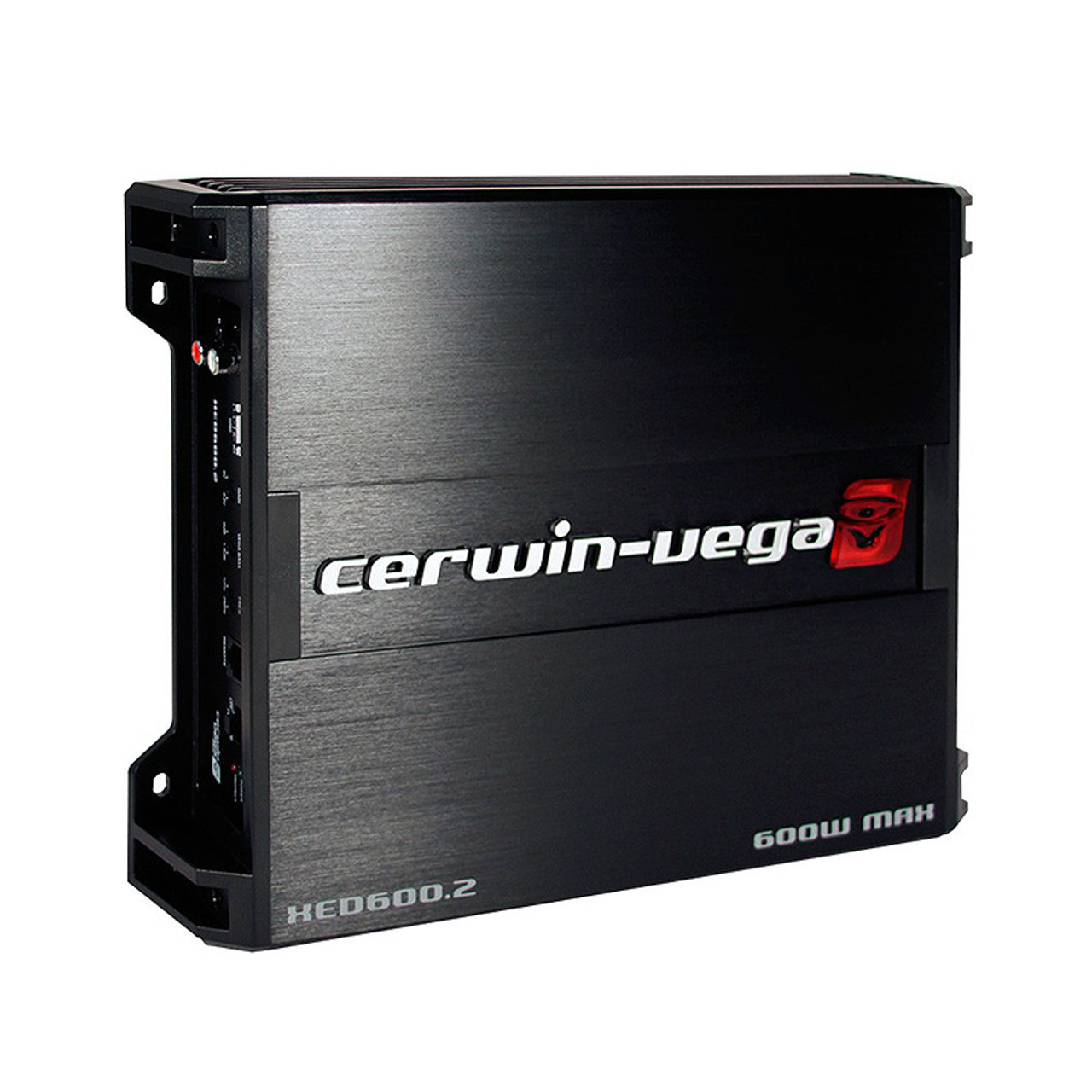

Cerwin-Vega XED600.2

Product Description

General Features:

• XED Series 2-Channel Class AB Car Amplifier
• RMS Power Rating:
• 4 ohms: 60 watts x 2 chan.
• 2 ohms: 85 watts x 2 chan.
• Bridged 4ohms: 240 watts x 1 chan.
• Max Power Output: 600W
• High Quality 2-Channel Class AB Topology Design
• Heavy-Grade Aluminum Alloy Extruded Heatsink
• LED power (green) and protect (red) indicators
• Power Supply Threshold: 10.0 VDC - 17.0 VDC
• Total Harmonic Distortion: 0.1%
• Signal to Noise Ratio (@1w): 85 dBa
• Low Input Sensitivity: 0.2 mV - 6.0 V
• High Input Sensitivity: 2.0 mV - 20.0 V
• Damping Factory: >70
• Frequency Response: 10 - 45000 Hz
• Selectable Crossover Modes: LPF/Full/HPF
• Variable low-pass filter: 50 - 250 Hz
• Variable subsonic filter: 50 - 250 Hz
• Variable Bass Boost: 0 - 9 dB
• Fuse Rating: 25A x 1
• 8 gauge power and ground wiring is recommended for installation
• Dimensions: 8.875"W x 10.90"L x 2.187H
