Product Description

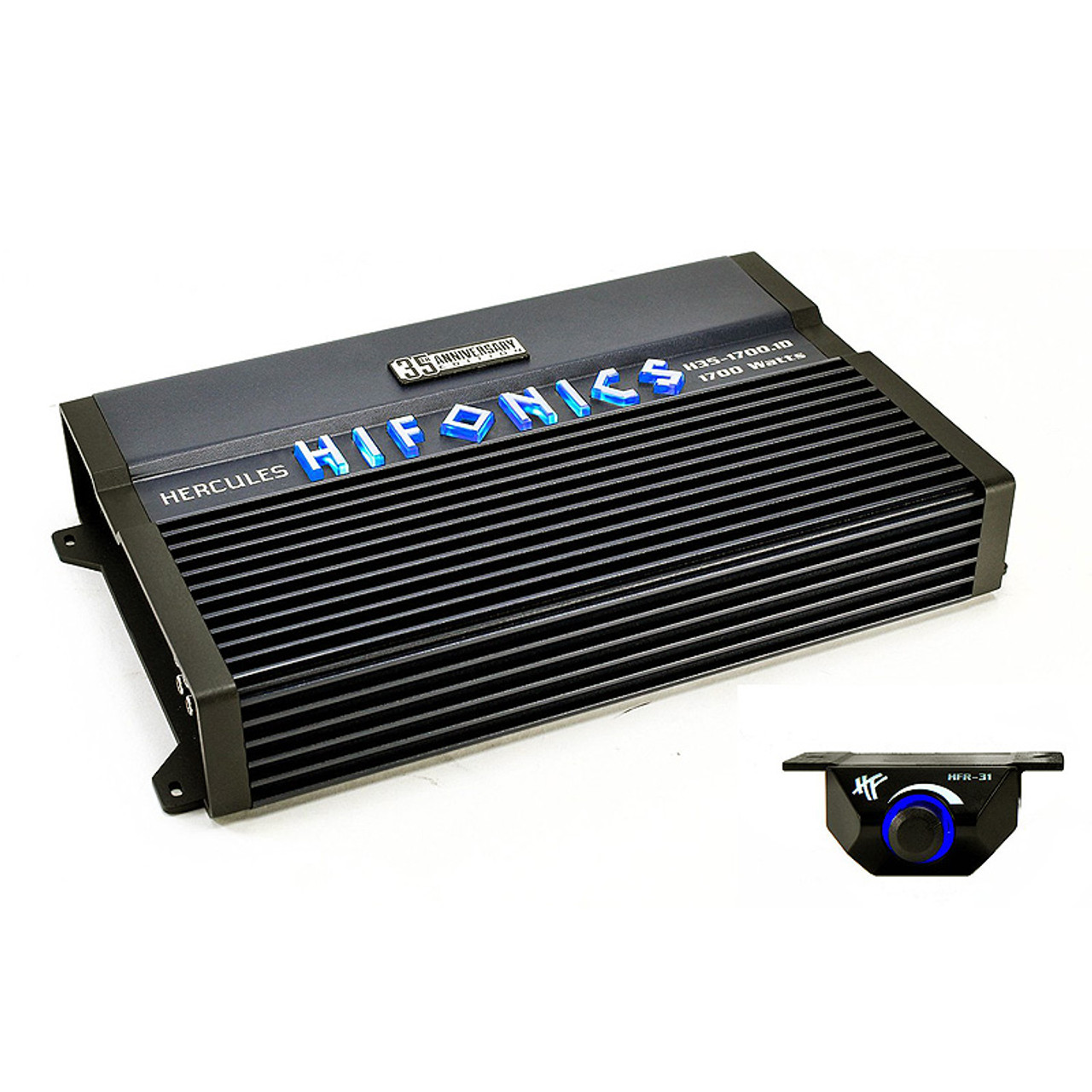

- Hifonics 35th Year Anniversary LTD HS35-1700.1D Amplifier
- Super Class-D 1-Ohm Stable Monoblock Amplifier
- Power Rating:
- 4 ohms: 750 watts x 1 chan.
- 2 ohms: 900 watts x 1 chan.
- 1 ohm: 1700 watts x 1 chan.
- Total power output: 1700 watts
- Twin Turbo Coil PS Pulse Width Modulated MOSFET power supply - keeps voltage constant through the Ultra-Fi output devices
- Illuminated Wired remote bass level control included
- LED power (green) and protect (red) indicators
- Soft start turn-on
- Preamp RCA outputs to daisy chain multiple amps
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Heavy duty aluminum alloy heat-sink for extreme heat dissipation
- Nickel plated RCA, Speaker and Power connections
- Input sensitivity: 200mV - 9V
- Frequency Response: 15 - 250 Hz
- Signal to Noise Ration: >80 dB
- Variable low-pass filter: 35 - 250Hz, 12 dB/octave
- Subsonic filter: 15- 35Hz
- Variable Bass Boost: 0 to +9 dB bass boost at 45Hz
- Fuse Rating: 80 A x 1
- 4 gauge power and ground wiring is recommended for installation.Â
