Product Description
Product Highlights:

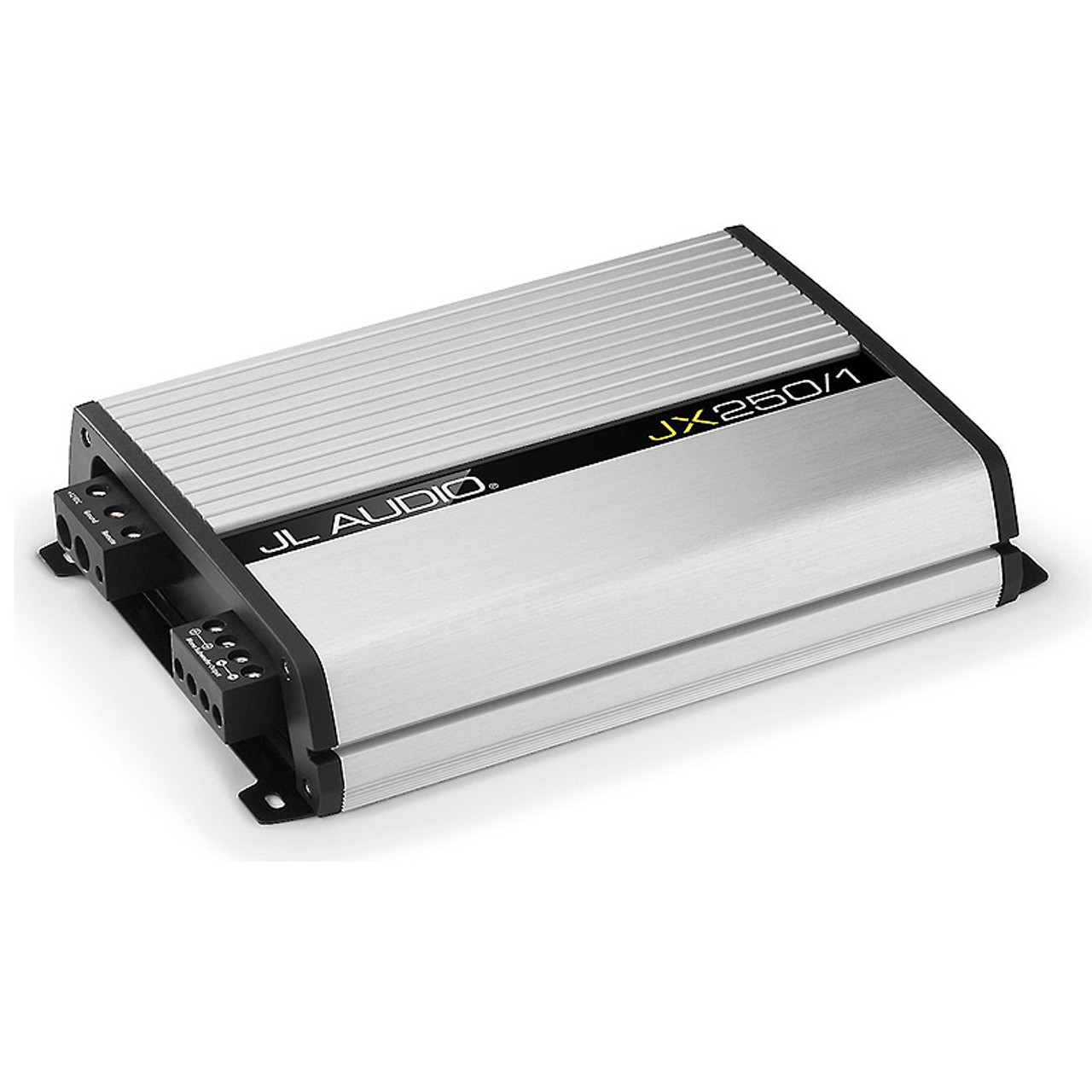

- JX Series 1-Channel Class A/B Car Amplifier
- RMS Power Rating (@ 14.4V):
- 4 ohms: 175 watts x 1 chan.
- 3 ohms: 210 watts x 1 chan.
- 2 ohms: 250 watts x 1 chan.
- 2 ohms: 500 watts max power x 1 chan.
- RMS Power Rating (@ 12.5V):
- 4 ohms: 130 watts x 1 chan.
- 3 ohms: 170 watts x 1 chan.
- 2 ohms: 210 watts x 1 chan.
- Unregulated PWM switching type power supply
- Remote bass level input (JL Audio RBC-1 sold separately)
- LED power (green) and protect (red) indicators
- Variable Bass Boost (0 to +12 dB bass boost centered at 45 Hz)
- Soft start turn-on prevent clicking and popping when system turns on
- 1 channel operation
- Speaker-level (high-level) inputs with signal sensing for automatic turn-on
- Preamp RCA outputs to daisy chain multiple amps
- 3-Way System Protection circuitry (thermal, low impedance, and speaker short protection)
- Heavy duty aluminum alloy heatsink for effective heat dissipation
- Nickel-plated RCA level inputs
- Nickel-plated screw terminals
- Input sensitivity:
- Low level: 200mV-4V
- High level: 2.0V-10V
- Variable low-pass filter (50-200 Hz, 12 dB/octave)
- Damping factor: >160 @ 4 ohms / >80 @ 2 ohm
- Frequency response: 10-150 Hz (+/– 1 dB)
- Dimensions: 11L x 7-3/4"W x 2-1/8"H
