Product Description
General Features:

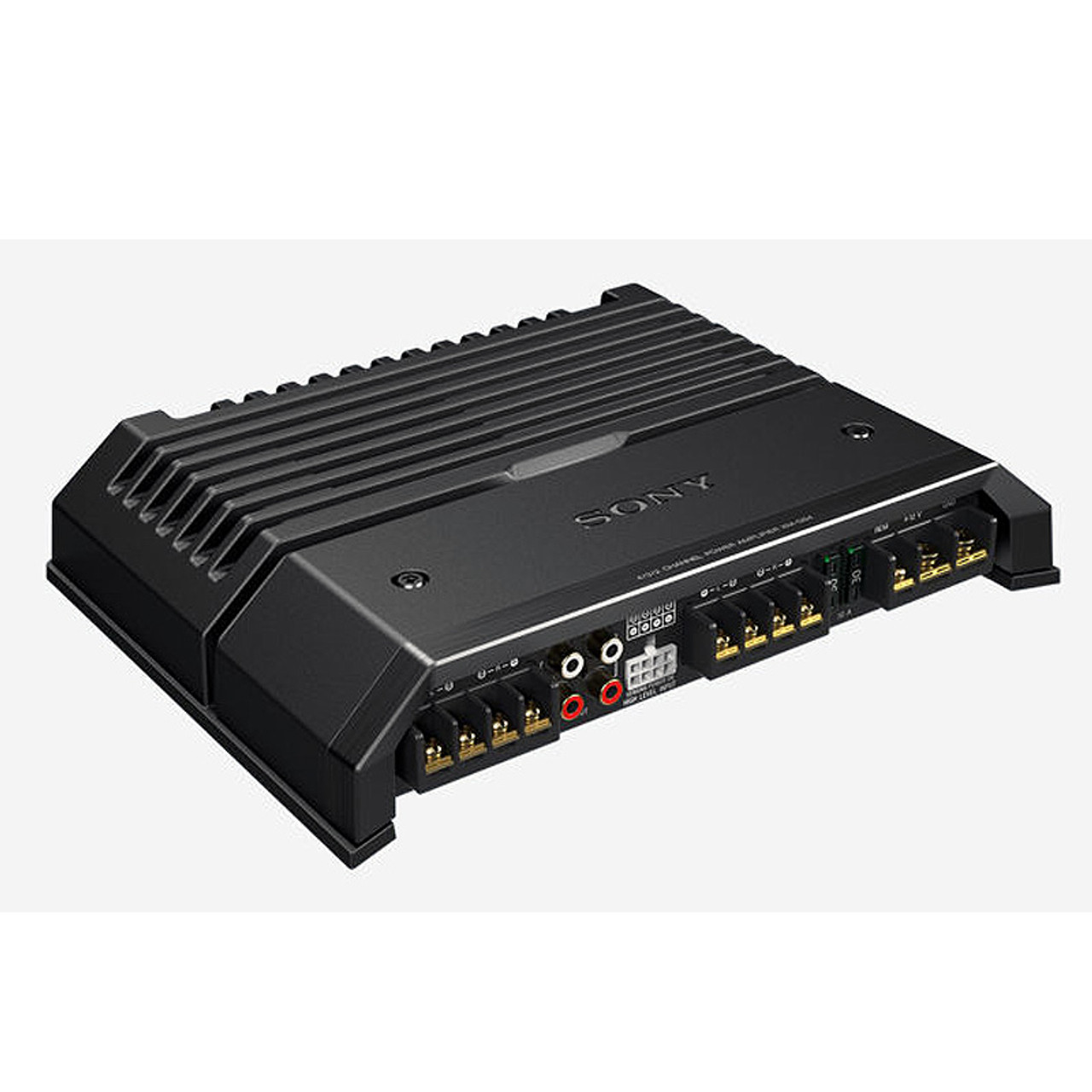

- 4-Channel Hi-Resolution Audio Compatible 4-Channel Car Amplifier
- Max Power Rating:
- 4 ohms: 150 watts x 4 chan.
- 2 ohms: 175 watts x 4 chan.
- Bridged, 4 ohms: 350 watts x 2 chan.
- Total power output: 700 watts MAX
- CEA-2006 Compliant Amplifier
- Ultra-wide frequency range that extends up to 100 kHz
- Engineered for minimal noise and maximum efficiency
- High-quality electrolytic capacitors assist in powering bright, versatile sound
- High-current transistor ensures fast, efficient power transfer for responsive operation
- Low flux choke coils in the power block deliver low-noise, high-quality sound reproduction
- Twisted-wire cable structure provides additional noise resistance from electromagnetic interference
- Premium Schottky-barrier diodes provide faster switching and superior system efficiency for smoother, more stable audio
- Potentiometers are highly reliable, for consistently minimal noise
- Pulse Width Modulated MOSFET power supply
- Removable top panel conceals complete crossover & level controls
- Compact aluminum alloy chassis
- LED power (blue) and protect (red) indicators
- Soft start turn-on
- 4, 3 or 2 channel stereo operation
- Speaker-level (high-level) inputs with Auto Turn-on for OEM Integration
- Gold-plated RCA level inputs
- Gold-plated screw terminals
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Heavy duty aluminum alloy heat-sink for extreme heat dissipation
- Input sensitivity:
- Low level: 300mV - 6V
- High level: 1.2V - 12V
- Frequency Response: 10 - 100,000 Hz (+0/-3 dB)
- Tolerance: +0.5 / -3 dB
- Total Harmonic Distortion (THD): 0.05% (1kHz @4 ohm)
- Signal to Noise Ration: 100 dBA
- Selectable crossover modes: LP / OFF / HP
- Variable crossover filter point: 50 - 300 Hz, 12 dB/octave
- Subsonic filter: 6 - 70 Hz , 12 dB/octave
- Variable Low/Bass Boost: 0 to +10 dB bass boost at 40 Hz
- Current Drain (Rated output @ 4ohms): 33A
- Fuse Rating: 30A x 2
- 4 - 8 gauge power and ground wiring is recommended for installation.
- Dimensions: 10-3/4"WÂ x 8"DÂ x 2-1/8"H
