Product Description
General Features:

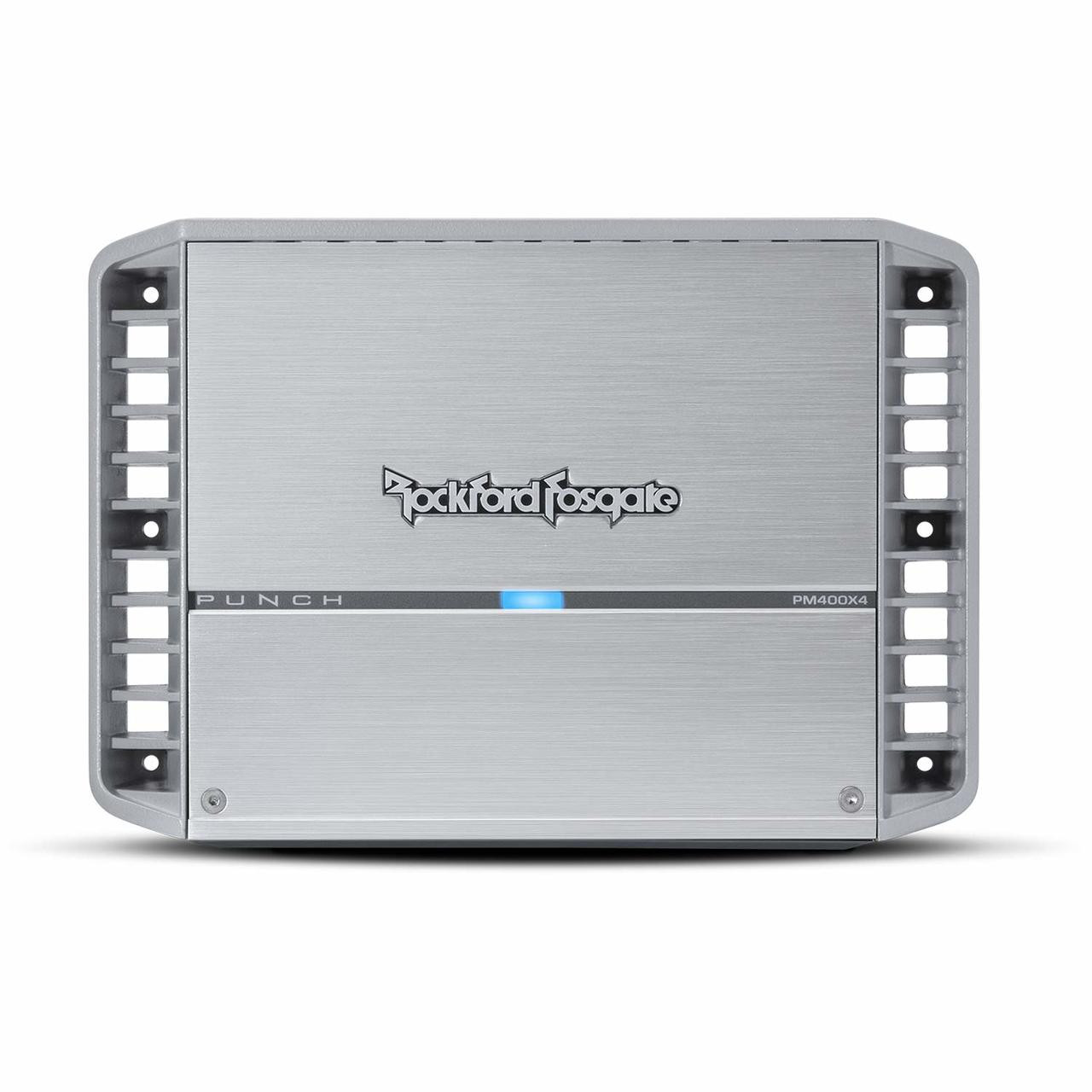

- 4-Channel Punch Series Class AB Marine Amplifier
- RMS Power Rating:
- 4 ohms: 50 watts x 4 chan.
- 2 ohms: 100 watts x 4 chan.
- Bridged 4 ohms: 200 watts x 2 chan.
- Dynamic Power:
- 4 ohms 0° Res : 82 watts x 4 chan.
- 2 ohms 0° Res : 137 watts x 4 chan.
- Bridged 4 ohms 0° Res: 266 watts x 2 chan.
- Includes a Rockford Fosgate Performance Verification Certificate
w/ Inspection Data & Actual Power Rating, (aka "Birth Sheet") - CEA-2006 compliant amplifier
- CE Compliant
- LED power (blue) and protect (red) indicators
- Features C.L.E.A.N. Set-up with 10-step set-up procedure
- Muted turn on
- Stealth top mounted control panel
- Cast aluminum heatsink
- Short circuit protection
- Over current protection
- Marine grade two part epoxy coating on circuit boards
- Marine grade stainless steel hardware
- Preamp RCA outputs to daisy chain multiple amps
- Balanced Differential Inputs, to eliminate noise picked up by signal cables
- Protected against Dust, UV, & Corrosion
- Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.
- Features MEHSA3 (Maximum Efficiency Heat Sink Application - gen3)
- High level input capable with Auto Turn-On circuit:
- Requires Rockford Fosgate RFIF2SW, sold separately
- Input sensitivity: 150 mV - 12 V
- Frequency Response: 20 - 20,000 Hz
- Efficiency (average): 67% @ 4-Ohm
- Total Harmonic Distortion (THD): <1.0%
- Punch EQ Bass: 0 - +18dB boost @ 45Hz.
- Punch EQ2 Treble: 0 - +12.5dB @ 12.5kHz
- 12dB/octave Butterworth crossover (selectable)
- Variable high-pass filter: 50 - 250 Hz, 12 dB/octave
- Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
- Recommended Fuse Rating: 60A x 1 inline (not included)
- Operating Voltage: 9 - 16 VDC
- Max Current Draw: 60 A
- Average Current Draw: 30 A
- Power Wire Gauge: 4 AWG - 8 AWG
- Speaker Wire Gauge: 8 AWG - 18 AWG
- 4 gauge OFC power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
- Dimensions: 7.76"W x 11.03"L x 2.38"H
